Parsing and Compiling

Between a file and a decision#

At the end of the last chapter there was a text file and a promise. The file said WHEN ema(btc.close, 9) CROSSES ABOVE ema(btc.close, 21), and the promise was that “compiles” would mean something stronger than “the syntax was acceptable” — that a file which passes is one where the engine knows exactly what to do.

This chapter is how that promise gets kept. It is a short journey with an unusual amount of refusing in it.

Start with what has to happen at all. A file is a sequence of characters. An engine is a loop that receives candles and decides things. Something in between has to turn one into the other, and the interesting question is not how — the mechanics are ordinary — but where the checking goes and what happens when a check fails.

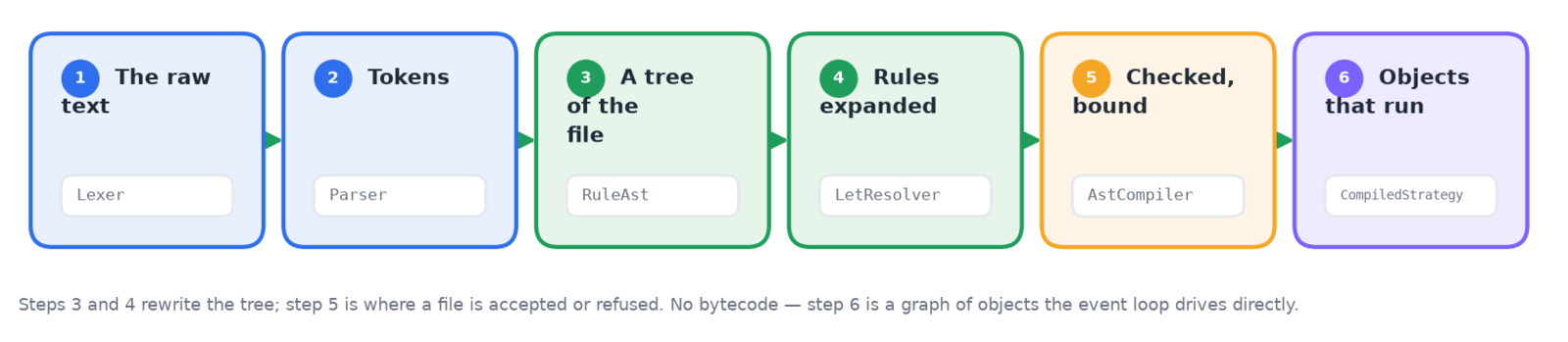

Figure 13.1 — the whole pipeline. Steps 1 and 2 turn characters into words, step 3 into structure, step 4 rewrites that structure, step 5 decides whether the file is allowed to exist, and step 6 is a graph of objects a running engine drives.

Characters, then words, then shape#

The first two steps are the least surprising in the book, and worth covering quickly because they set up everything that follows.

A lexer walks the file character by character and groups characters into words — what a compiler calls tokens. WHEN is a keyword, btc is a name, 9 is a number, "long entry" is a string. One token type here is worth noticing because it is a domain decision hiding in the plumbing: a duration. 10m is not a number followed by a name — it is a single token meaning ten minutes, and the lexer only accepts a whole number with an s, m, h or d suffix. 10.5m is not a duration. That restriction exists because a trading window that is not a whole number of minutes is almost always a typo, and it is cheaper to refuse it in the lexer than to reason about it later.

A parser then turns that flat stream of tokens into a tree — the structure the file was always describing. a AND b > c becomes an AND whose right-hand side is a comparison, because the parser knows comparison binds tighter than AND. This is standard, and qkt’s is a plain hand-written recursive-descent parser rather than anything generated — meaning one small function per grammar rule, each calling the functions for the pieces it is made of, so the shape of the code mirrors the shape of the language.

One decision here is not standard, and it shows up the first time you make two mistakes at once. The parser collects errors instead of throwing on the first one. A file with a typo on line 7 and another on line 30 reports both, in one run. The alternative — stop at the first problem — is easier to write, and it produces the fix-one-thing-rerun-fix-the-next- thing loop that anyone who has used a strict compiler knows. Collecting errors costs real complexity: the parser has to recover from a bad construct and resynchronise well enough to keep walking, which is genuinely fiddly. It is spent on the reader’s behalf.

The check that stops a file from ending early#

There is one guard in the parser worth pulling out on its own, because what it prevents is so much worse than what it looks like.

After every recognised block has been parsed, qkt checks that every token was consumed. Not “the file parsed” — that every last token was used by something.

Think about what happens without that check. A strategy file has a typo in a section header: RULE instead of RULES. The parser reads the header, the symbols, and then reaches a token it does not recognise as the start of any block. With no end-of-input check, the natural behaviour is to stop and report success — everything it did parse was valid. The file compiles. It deploys. And it deploys with no rules in it at all, which is to say: a strategy that connects to a broker, warms up, receives every tick, and never trades, with nothing anywhere reporting a problem.

That is the worst failure shape in this entire book — not a crash, not a wrong number, but a silent nothing that looks exactly like a strategy whose conditions simply have not been met yet.

Here is the check doing its job, on a real file with its blocks in the wrong order:

$ qkt parse momentum_sweep.qkt
momentum_sweep.qkt:6:1 — unexpected 'SYMBOLS' after the last recognized block
  — everything from here on would be silently ignored

Read the second half of that message again: everything from here on would be silently ignored. The error does not merely say the file is wrong. It says what the alternative would have been, which is the difference between a diagnostic that helps and one that only complains. One require-style check at the end of parsing is what stands between a misplaced block and a week of wondering why the account never moved.

Rewriting the tree before checking it#

Two passes then rewrite the tree, and both are worth understanding because they explain why some of the language’s limits exist.

FOR EACH is the first. It looks like a loop and it is not one — it is a copy machine. One rule body written against an iteration variable becomes N separate, independent rules, one per named stream, before anything runs. The substitution walks every shape a rule can contain: conditions, sizing, order prices, brackets, stack tiers, exit hooks. After it runs, nothing downstream knows a FOR EACH was ever there.

That is exactly why Chapter 12’s restrictions on it hold. There is no runtime iteration to be had, because there is no iteration at all — you cannot loop over a list computed while trading for the same reason you cannot copy-paste at runtime. And it is why the expansion has to happen before checking rather than after: the compiler validates the rules that will actually run, not the abbreviation someone wrote.

LET is the second, and it works the same way — a named expression is substituted into the places that reference it. Both passes are pure rewrites: they produce a tree that could have been written by hand, and everything after this point sees only that tree.

The stage that says no#

Now the interesting part. With a fully expanded tree, the compiler walks it and decides whether this file is allowed to exist.

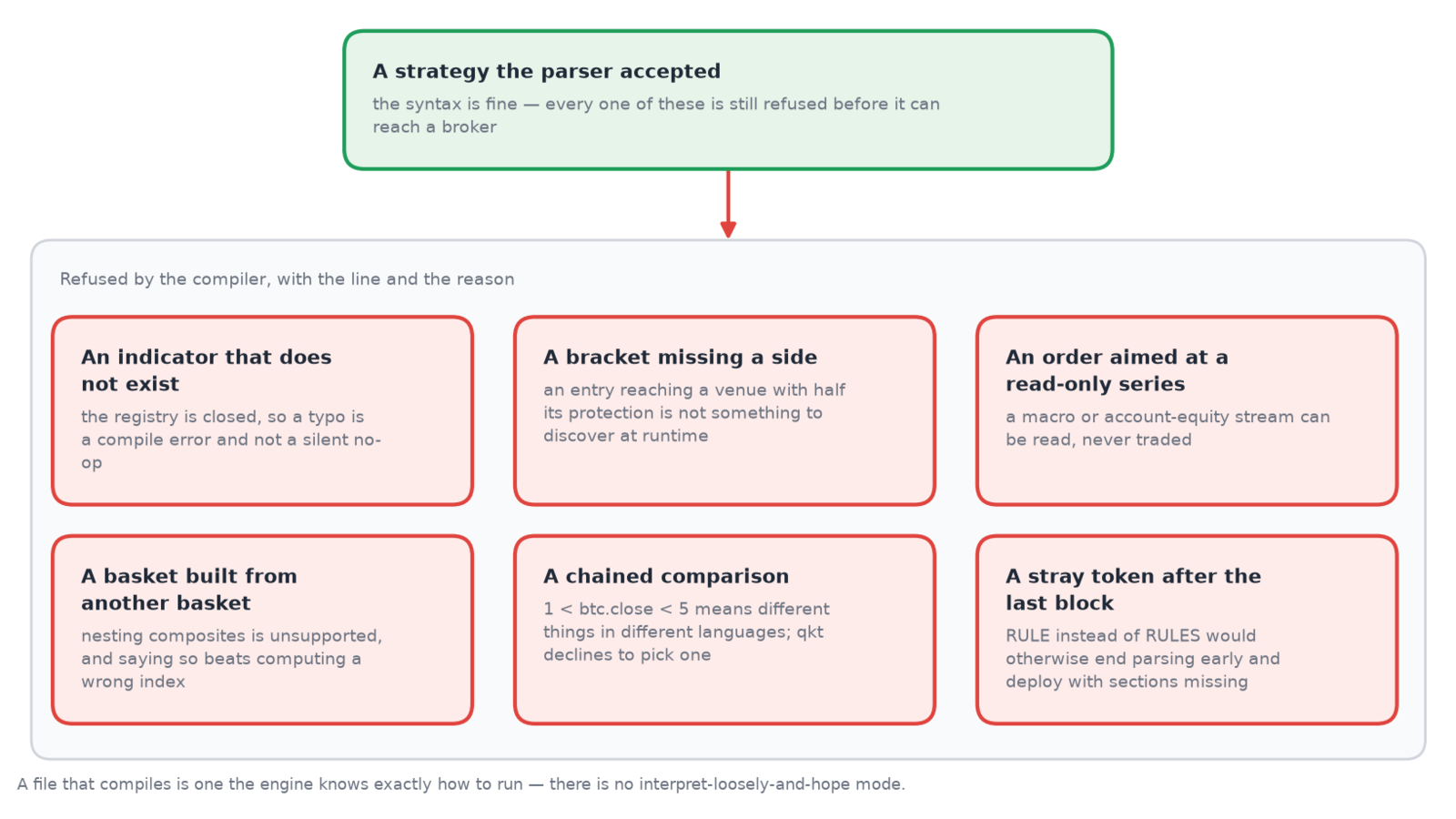

Figure 13.2 — every one of these files parses. None of them compiles. The distinction is the whole point of the stage: syntax is not the same as being fully specified.

Some of these are ordinary. An indicator that does not exist is caught because the registry is closed — emaa is not a name anyone can add at runtime, so a typo is a compile error rather than a call that silently returns nothing:

$ qkt parse strategies/broken.qkt
strategies/broken.qkt:1:1 — Unknown indicator: emaa
1 error

Others are trading decisions wearing compiler clothing. A bracket missing either its stop or its target is refused by name. Not warned about — refused. The reasoning is the one from Chapter 6: protection that is supposed to be attached and isn’t is worse than protection that was never claimed, because everything downstream reasons as though the position is covered. Discovering that at runtime means discovering it with a position open.

An order aimed at a read-only series is refused — an account-equity series or an external macro series can be read by a condition but never traded, and the compiler knows which streams are which. A basket built out of another basket is refused, because nesting composites is not supported and saying so is better than computing a plausible, wrong index.

And then there is the one that is purely about ambiguity:

$ qkt parse strategies/chained.qkt
strategies/chained.qkt:1:1 — Chained comparisons are not supported; combine explicit comparisons with AND
1 error

1 < btc.close < 5 is read by a mathematician and by Python as “between one and five.” Most programming languages read it as (1 < btc.close) < 5 — comparing a true/false value against five, which is either a type error or, worse, quietly meaningful. There is no reading qkt could pick that is not surprising to half its readers, so it picks none and makes you write the AND. The error costs a few seconds. The wrong guess costs a strategy that trades on a condition its author misread.

Counting bars before anything trades#

The last thing the compiler does is the one Chapter 12 built its whole argument around: work out how much history this strategy needs.

The walk is exhaustive by necessity. Every rule condition, every action — sizing expressions, order prices, bracket child prices, stack tier specifications — every LET binding and every sequence stage gets visited, and each indicator found along the way is asked how many bars it needs. Not inferred from its arguments: asked. MACD(12, 26, 9) answers thirty-four, because the signal line is an average of the MACD line and cannot begin until that line exists, so the requirement is slow + signal - 1 and not the twenty-six a reader would guess from the biggest number.

Requirements compose the way the expressions do. An average of an average adds rather than maxes. A rule comparing a one-minute stream against a five-minute one produces two separate numbers, each in its own stream’s bars. The result is a per-stream bar count, and rules do not fire until every stream a rule mentions has cleared its own count.

There is a small, elegant consequence in how that gate is checked. Warmth only ever increases — a stream that has seen enough bars cannot later have seen fewer — so once a particular set of streams is warm, the answer is latched and the per-stream walk is skipped from then on. A monotonic fact only needs computing once.

What compiling produces, and what it costs#

The output is not bytecode, and it is not a tree that gets walked and interpreted on every tick. It is a graph of ordinary objects: compiled conditions, bound indicator instances, compiled actions, a warmup gate. The event loop drives those directly. The text is gone by the time anything trades.

What all this bought is the guarantee the last chapter promised, made concrete: a file that compiles has every stream resolved, every indicator existing with the right arity, every bracket complete, and a known number of bars before it may act. The editor’s squiggles, qkt parse, and a deploy all run this identical pipeline, so what an editor tells you and what production tells you cannot disagree.

What it costs is that strictness has no volume knob. There is no permissive mode, no --force that says compile it anyway, no warning level that downgrades a refusal into a note. A strategy that is ninety per cent right does not run at ninety per cent — it does not run. For someone iterating quickly on an idea, that is genuinely worse than a language that lets a half-finished file limp along, and it is a real cost paid every day by the person writing strategies.

The trade is that the failure it prevents is the one that does not announce itself. A permissive compiler moves the discovery of a mistake from your editor to your account statement, and only one of those two places charges for the lesson.
