Candles

Anyone who has ever glanced at a stock or crypto chart has seen candles, even without knowing the word for the underlying object. Each one of those small red or green shapes on the chart is a summary of everything that happened to a price over some fixed stretch of time — a minute, an hour, a day. It answers four questions about that stretch: where did the price start, where did it end, how high did it go, how low did it fall. That’s it. Four numbers, called open, high, low, close — OHLC for short — compressing potentially thousands of individual price changes into one shape a person can glance at and understand in half a second.

Why bother compressing at all? Because a raw stream of ticks is too noisy and too voluminous to reason about directly, for a person or for an algorithm. A strategy that wants to know “has this market been trending up over the last hour” doesn’t want to personally inspect every one of the several thousand ticks that arrived during that hour — it wants one clean number per hour: the close. Almost every classic piece of trading vocabulary — a moving average (the average of the last N closes), a breakout (a close beyond the recent high or low), a candlestick pattern — is defined in terms of these compressed bars, not raw ticks. Bars are the unit trading actually thinks in.

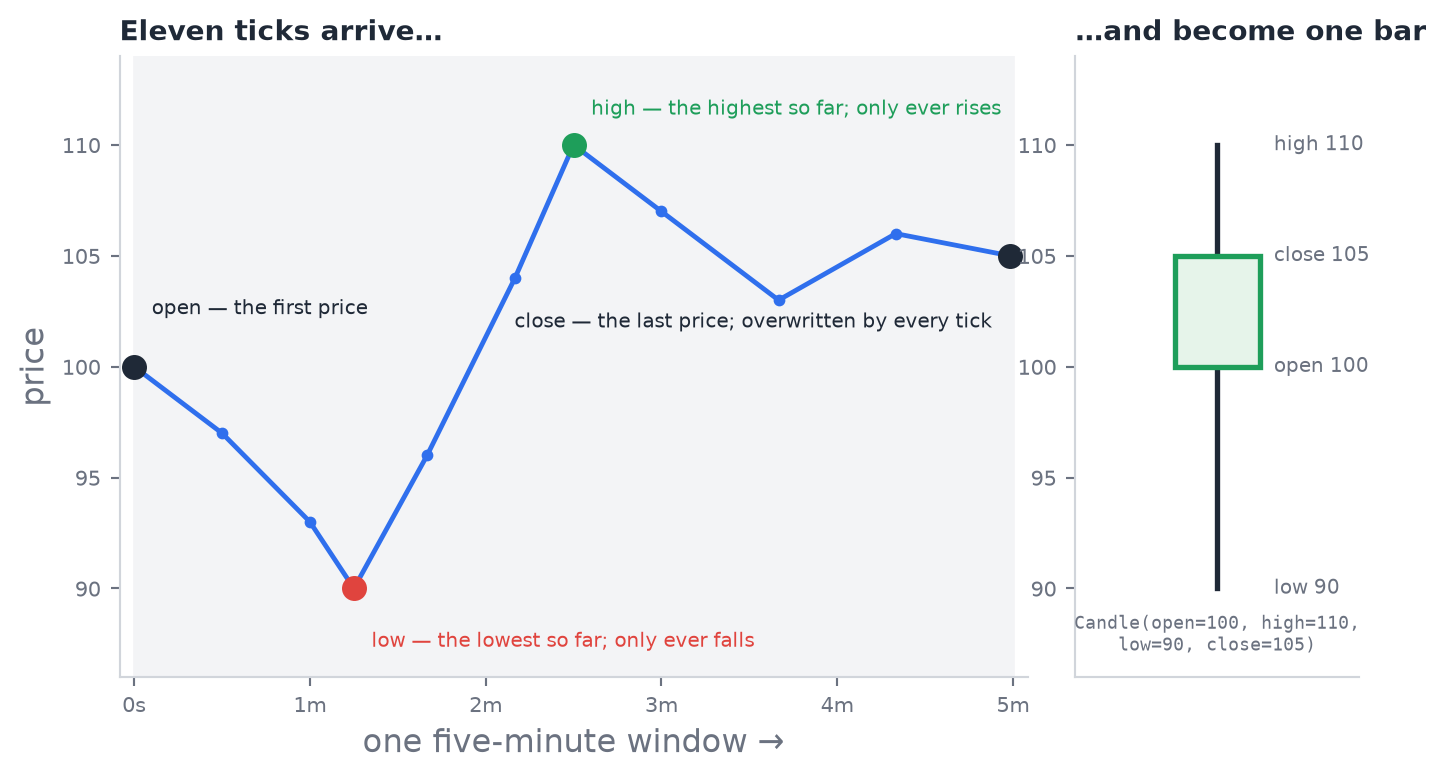

Figure 4.1 — compression. Eleven facts go in, four numbers come out, and the four are exactly the ones a trader’s vocabulary is built on.

Turning that into a software problem#

So: something has to sit between the raw tick stream and anything that wants bars, and do the compressing. What does that something actually need to track, while a five-minute window is still open and ticks keep arriving? Four running numbers — the first price it saw (open, fixed forever once set), the highest and lowest it’s seen so far (high and low, both capable of only moving in one direction as new ticks arrive), and the most recent price (close, which keeps getting overwritten by every new tick until the window ends). The moment a tick arrives that belongs to the next window, the current one is done — it gets finalized and handed off, and a brand new one starts.

The previous chapter already established the piece this naturally plugs into: a component that wants to react to every tick just subscribes to TickEvent. A candle builder is exactly that kind of subscriber — it listens to the same tick stream everything else does, and rather than acting on each tick immediately, it accumulates them until a window closes, at which point it publishes something new of its own.

The shape of a finished bar#

data class Candle(
    val symbol: String,
    val open: BigDecimal,
    val high: BigDecimal,
    val low: BigDecimal,
    val close: BigDecimal,
    val volume: BigDecimal,
    val startTime: Long,
    val endTime: Long,
    val bid: BigDecimal? = null,
    val ask: BigDecimal? = null,
)

The four OHLC fields map directly onto the chart shape described above; volume is how much was traded during the window, where the feed reports it. startTime/endTime pin down exactly which window this bar covers — necessary for the same audit-trail reason Order and Trade carried timestamps back in the first chapter: a bar is a claim about a specific slice of history, and that claim needs to be checkable. bid/ask — the price buyers are offering and the price sellers are asking, the two sides of the market — carry over from the last tick seen in the window, for the same reason a Tick optionally carries them: not every price feed reports both sides, so it stays optional rather than pretending a value exists when it doesn’t.

Which bar does this tick belong to?#

Before anything can accumulate, there’s a question to settle that sounds trivial and isn’t: a tick arrives carrying a timestamp — which five-minute window is it part of?

We all know how to round a number down. That’s genuinely all this is, done in milliseconds: integer-divide the timestamp by the window size, then multiply back, and you land on the start of whichever window that timestamp falls into. But notice the decision hiding inside it — qkt anchors every window to the epoch, so a five-minute bar always starts at :00, :05, :10, and a daily bar always starts at UTC midnight.

@JvmInline
value class TimeWindow(val durationMs: Long) {
    fun windowStartFor(timestamp: Long): Long = (timestamp / durationMs) * durationMs
}

That @JvmInline value class is doing quiet work too. A window is, underneath, just a Long — but a bare Long could be milliseconds, seconds, or a typo, and nothing would catch it. Giving it a name means a five-minute window is written and read as TimeWindow.FIVE_MINUTES or TimeWindow.parse("5m"), while still compiling down to a plain Long with no object allocated at runtime. The safety is free.

That has a consequence worth knowing about up front. Many trading platforms use session-anchored bars, where the daily bar starts at the market’s own open — for FX, conventionally 17:00 New York. So qkt’s daily bar and a broker’s daily bar cover different stretches of history and will not share an open or a close, and comparing the two directly will mislead you.

Epoch alignment is what keeps a window a pure function of the timestamp. No session calendar, no venue rollover table, no holiday list, and — the part that carries the most weight — the same tick lands in the same window whether it arrives live or gets replayed years from now. Anchoring to sessions would trade all of that away to make charts line up.

Building one bar at a time#

A live system rarely watches one instrument. Gold, a couple of FX pairs, and BTC might all be streaming at once, and each one’s five-minute window opens and closes on its own schedule — so there isn’t a bar in progress, there’s one per symbol:

private val open = mutableMapOf<String, MutableCandle>()

Handling one tick then comes down to three cases: there’s no bar open yet for this symbol (start one), the tick still belongs to the currently open bar (update it), or the tick belongs to the next window (finalize the current bar and start a fresh one):

if (tick.timestamp >= state.endTime) {
    emitClosed(state)
    open[tick.symbol] = newState(tick)
    return
}
state.update(tick)

emitClosed is the moment a finished bar gets published onto the event bus as a CandleEvent, exactly the way Engine published TickEvent — anything downstream (an indicator, a strategy trading off bars instead of ticks) subscribes to that independently.

A closed bar stays closed#

There’s a rule worth pulling out on its own, because it protects something important: once a bar has been published, nothing is allowed to reopen it, even if a tick shows up afterward claiming to belong to that window.

if (tick.timestamp < (lastClosedEnd[tick.symbol] ?: Long.MIN_VALUE)) {
    if (countLateDrop) droppedLateTicks++
    return
}

Think through why this has to be true. The moment a bar is published, anything listening — a moving average, a strategy’s own internal state — has already incorporated it into a calculation and moved on. If a late-arriving tick were allowed to silently revise that bar’s high or close after the fact, every calculation built on top of it would now be wrong, with no way for anything downstream to know it needed to redo the work. Worse than wrong: an indicator that already consumed the bar would be fed the same window twice. A published fact has to stay a fact. A late tick is dropped and counted, not silently absorbed — the same instinct as returning null instead of inventing a value.

The same guard runs one level in, against the bar currently open: a tick older than the open bar’s own start is dropped too, on identical reasoning.

Where do late ticks even come from? Two places. A venue can deliver out of order — and, as the next section builds, qkt itself is about to become the second source.

Quiet markets need a nudge that ticks alone can’t give#

Here’s a genuine wrinkle worth sitting with. A bar closes, in the design above, when a new tick arrives that belongs to the next window. That’s fine for an actively traded symbol. But what if a symbol goes quiet — no trading, no ticks — for a stretch that spans an entire bar window? Nothing arrives to trigger the close.

Follow that through to what it actually costs, because it’s worse than a cosmetic gap. The last bar of a thin session never closes. Every rule waiting on that bar never evaluates. A strategy that trades the close of each bar simply stops trading, and nothing anywhere reports an error — the system is behaving exactly as designed, and is silently dead.

That situation is specific to live trading. During a historical replay, the tick stream is the entire notion of time — there’s no independent clock ticking in the background, so there’s nothing to distinguish “no ticks arrived because the market is quiet” from “no ticks arrived because we haven’t gotten there yet.” But live trading has both: a real wall clock running continuously, independent of whether any particular symbol happens to be trading at this moment. So live trading adds a periodic nudge — a heartbeat — that checks whether wall-clock time has moved past any open bar’s end, and closes it even with no new tick to prompt it:

fun flushClosed(nowMs: Long) {
    val it = open.entries.iterator()
    while (it.hasNext()) {
        val (_, state) = it.next()
        if (nowMs >= state.endTime) {
            emitClosed(state)
            it.remove()
        }
    }
}

And now the two halves meet. The heartbeat is precisely what makes the previous section’s rule load-bearing: a window can now be closed on the clock while ticks belonging to it are still queued somewhere behind it. The late tick isn’t a hypothetical venue misbehaviour any more — the system’s own liveness mechanism manufactures it. One feature creates the exact condition the other exists to survive, which is why neither can be removed on its own.

This is also one of the rare, deliberate places where live and backtest genuinely can’t run identical code. The difference isn’t papered over or left implicit — it’s a distinct method, called only where a real clock exists to drive it.

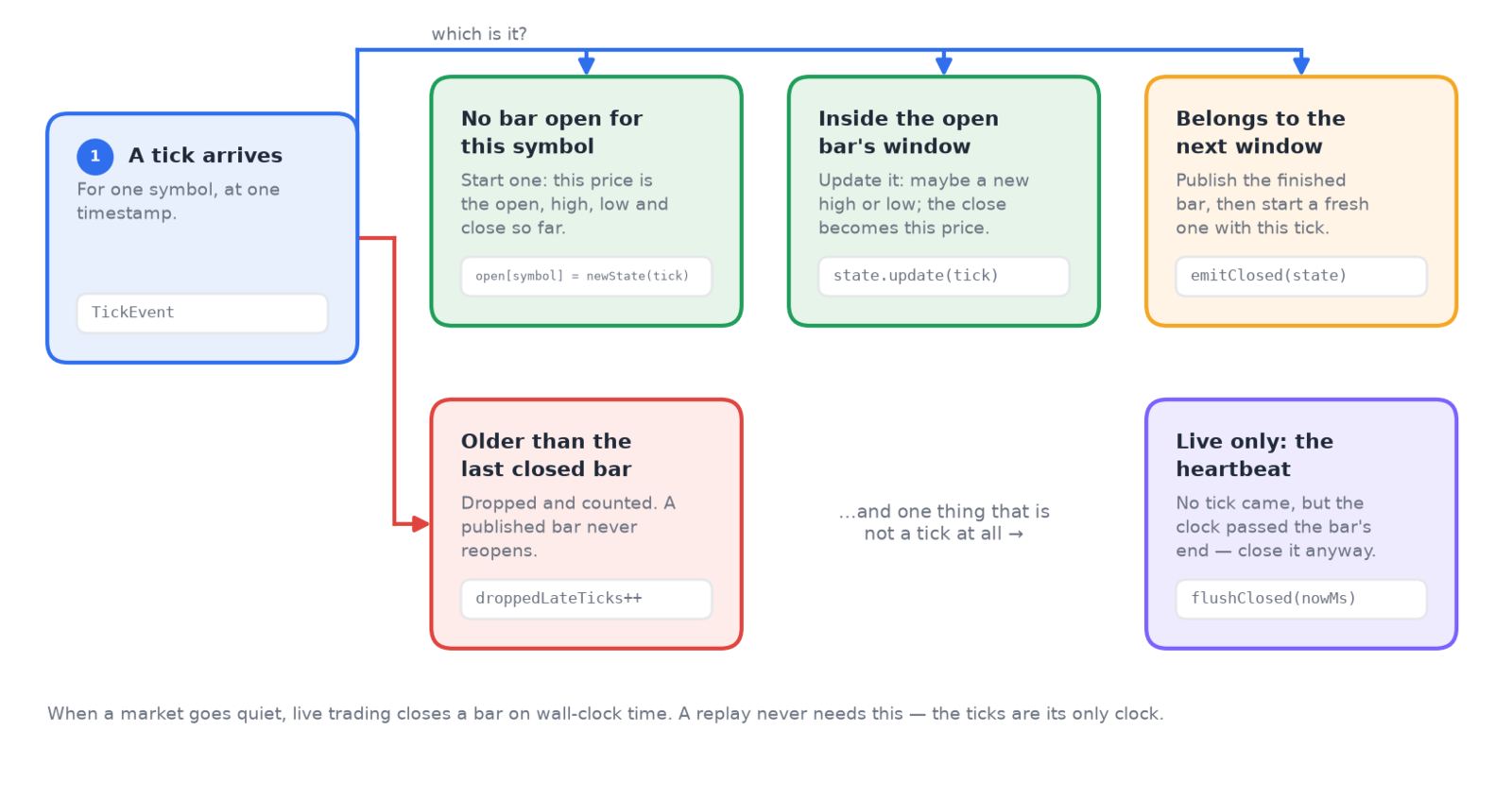

Figure 4.2 — everything one tick can do to the candle builder, and the one thing that isn’t a tick. Only the red branch throws information away, and it counts what it drops.

Replaying a bar that was never a tick stream#

One more situation to handle, and it’s the one a backtest lives in. Historical data usually arrives as bars, already built — every serious venue will send you OHLC, and qkt keeps a store of them on disk. So what happens when the input is a bar and everything downstream expects ticks?

The bar gets turned back into ticks. Four of them — open, the two extremes, close — at strictly increasing timestamps inside the window, pushed through the same aggregator every live tick goes through:

fun candleToTicks(candle: Candle): List<Tick> { /* open, low, high, close */ }

Run the round trip and you land exactly where you started: first tick becomes the open, the max becomes the high, the min becomes the low, the last becomes the close. The bar in equals the bar out.

The work is worth doing because of the sentence from Chapter 1 that decides everything. Feeding stored bars straight to a strategy would mean live builds its bars from ticks while a backtest inherits someone else’s, and “the same strategy sees the same bars” drops from a property to a hope — two sets of boundary rules, two definitions of what a five-minute bar even is. Routing everything through one aggregator keeps that claim structural: there is exactly one piece of code in the system that decides what a bar is.

What the reconstruction cannot do is invent the path back. Those four ticks are a fiction — a real five-minute window might contain nine hundred price changes that wandered up, collapsed and recovered, and the replay says it went open, low, high, close, calmly, four times. The four numbers a bar records genuinely do not contain the sequence that produced them.

Four numbers, and what they threw away#

A candle builder turns out to be a TickEvent subscriber that remembers a little more than most: instead of reacting to each tick alone, it holds a running summary open until a window ends, then publishes that summary as a fact of its own — one that, once published, is never allowed to change again.

What that bought is a single definition of “a bar” for the entire system, one that holds identically whether the ticks came from a live venue or a file on disk, plus a compression that turns thousands of noisy facts into the four numbers every piece of trading vocabulary is actually built on.

What it cost is a small pile of deliberate imprecision, all of it chosen rather than stumbled into. Bars are anchored to the epoch, so they won’t line up with a broker’s session-daily chart. Late ticks are thrown away rather than reconciled, and the system’s own heartbeat is one of the things that creates them. And a bar replayed from storage is a plausible reconstruction of a window, not a recording of it.

Every one of those is the same trade: give up a little fidelity to the individual tick, and get back one definition of the truth that behaves the same way everywhere. For a system whose entire claim rests on backtest and live seeing the same world, that’s the trade worth making — but it’s worth knowing you made it.
